Single Stage Air Compressor

Single Stage Air Compressors have high volume of Air, where Single/double cylinders sucks the air and compressed in air tank and these compressors are commonly used in market and has good volume of air at continuous required pressure.


Models

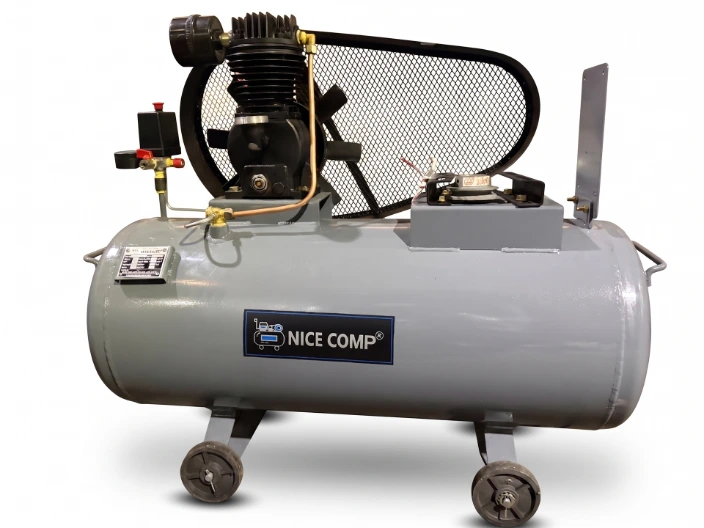

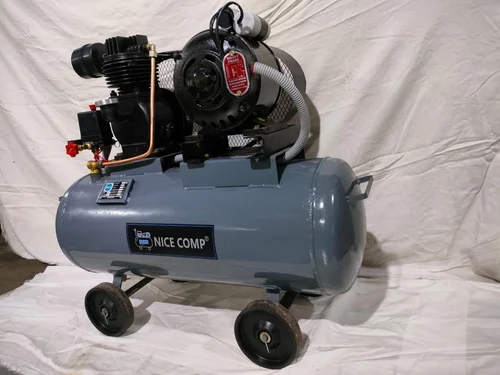

LC Models:

LC Model are economical low cost Air Compressors designed to suit every pocket. These Air Compressors Starts from 50 Ltrs 1HP to 300 Ltrs 5HP. These are widely used in Painting, Puncture Shops, Engineering Shops, Glass and Wood Industries.

Product Features :

  • Forged Crank Shaft with roller bearing for smooth, long, continuous running.
  • Cylinder and Heads auto shell cast with deep finned fins for excess heat absorption.
  • Dynamic balance heavy compressor pulley with long blades of fan cools the block.
  • High quality of Piston and Piston Ring helps oil control and smooth oil compressions.
  • High quality of Piston and Piston Ring helps oil control and smooth oil lubrication.
  • Air Receiver as Per ESMA Standards Hydraulically and Pneumatically tested at 14 kg/cm2.
  • Designed to give least vibrations and low noise levels.
  • Continuous R&D for trouble free working and longer life.
  •
  •  Technical Specifications
Product Specification Table
Model H.P Cylinder Tank Capacity (Ltr) Displacement Pressure Maximum Pressure Brochure
Cfm/div M³/Hr LPM PSIG KG/Cm²
LC-010A 1 Single 50 4.2 0.12 119 100 7 📄 PDF
LC-010B 1 Single 70 4.1 0.12 116 100 7 📄 PDF
LC-010C 1 Single 110 4.0 0.11 113 100 7 📄 PDF
LC-015A 1.5 Single 110 6.2 0.18 175 100-140 7-10 📄 PDF
LC-015B 1.5 Single 135 6 0.17 169 100-140 7-10 📄 PDF
LC-020A 2 Double 110 8.25 0.23 234 100-140 7-10 📄 PDF
LC-020B 2 Double 160 8 0.23 226 100-140 7-10 📄 PDF
LC-020C 2 Double 200 8 0.23 226 100-140 7-10 📄 PDF
LC-030A 3 Double 160 10.2 0.29 289 100-140 7-10 📄 PDF
LC-030B 3 Double 200 10 0.28 283 100-140 7-10 📄 PDF
LC-050A 5 Double 250 20 0.57 566 100-140 7-10 📄 PDF
LC-050B 5 Double 300 18.1 0.51 513 100-140 7-10 📄 PDF


PR Models :

PR Models are Premium Air Compressors designed and manufactures

Our Premium model Air Compressors are engineered to deliver superior performance, maximum efficiency, and long-lasting reliability. Built with advanced technology and high-quality components, they ensure consistent compressed Air output while minimizing energy consumption, Designed for demanding industrial applications, these compressors offer low maintenance, quiet operation, and exceptional durability, making them the ideal choice for businesses  seeking high productivity and dependable performance.

Our Premium range of Air Compressors is designed to deliver reliable performance, high efficiency, and exceptional durability for a wide range of industrial applications.

Single Stage Air Compressors :

Compact, Efficient, and Dependable, our Single Stage Compressors are ideal for light to medium duty applications. They Provide consistent air delivery , low maintenance, and economical operation, making them suitable for workshops, automotive service centers, and general industrial use.

Two Stage Air Compressors :

Engineered for high pressure and continuous duty applications, our Two Stage Compressors offer superior air delivery, enhanced efficiency, and extended service life. Built with robust components, they are the preferred choice for manufacturing plants, engineering industries, and other demanding industrial environments where reliable performance is essential.

Multi Stage High Pressure Air Compressors :

Our Multi Stage Air Compressors are specially engineered to produce high pressure compressed air for PET bottle blowing applications. Featuring advanced multi-stage compression, efficient cooling, and durable construction, they deliver clean, reliable, and energy-efficient performance. These Compressors are ideal for PET bottle manufacturing plants, ensuring consistent pressure, high productivity, and dependable operation in continuous production environments.

PR & PRH Air Compressor Models
PR & PRH MODEL AIR COMPRESSORS
Model No Tank Capacity (Ltr) RPM Displacement (Cfm/Min) Pressure (Kg/Cm²) Motor H.P Brochure
PRH-300 160 / 220 840 10.2 9 – 12 3 📄 PDF
PRH-500 220 / 250 840 19.2 9 – 12 5 📄 PDF
PR-030 220 840 21 8 3 📄 PDF
PR-075 300 - - - 7.5 📄 PDF
PR-050 250 840 21 8 5 📄 PDF
PR-100 300-500 840 32 7-10 10 📄 PDF
PR-20/1 110 840 7.0 8 2 📄 PDF
P-2550 250 840 32 / 38 9 – 12 7.5 / 10 📄 PDF
P-239B 160 840 10.1 9-12 3 📄 PDF
P-239C 200 840 10.1 9-12 3 📄 PDF
PRH-750 300 840 28 10 7.5 📄 PDF
PRH-1000 500 840 42 9 – 12 10 📄 PDF
PRH-1500 500 840 56 9 – 12 15 📄 PDF
P-247A 200 840 17.32 9 – 12 5 📄 PDF
P-247B 250 840 17.32 9 – 12 5 📄 PDF
P-2480A 250 840 22 9 – 12 5 📄 PDF
PSS3 110 840 - - 2 📄 PDF
